Supported Hardware#

This example application is supported on the XK-VOICE-L71 board.

Setting up the Hardware#

This example design requires an XTAG4 and XK-VOICE-L71 board.

all components

xTAG#

The xTAG is used to program and debug the device

Connect the xTAG to the debug header, as shown below.

xtag

Connect the micro USB XTAG4 and micro USB XK-VOICE-L71 to the programming host.

programming host setup

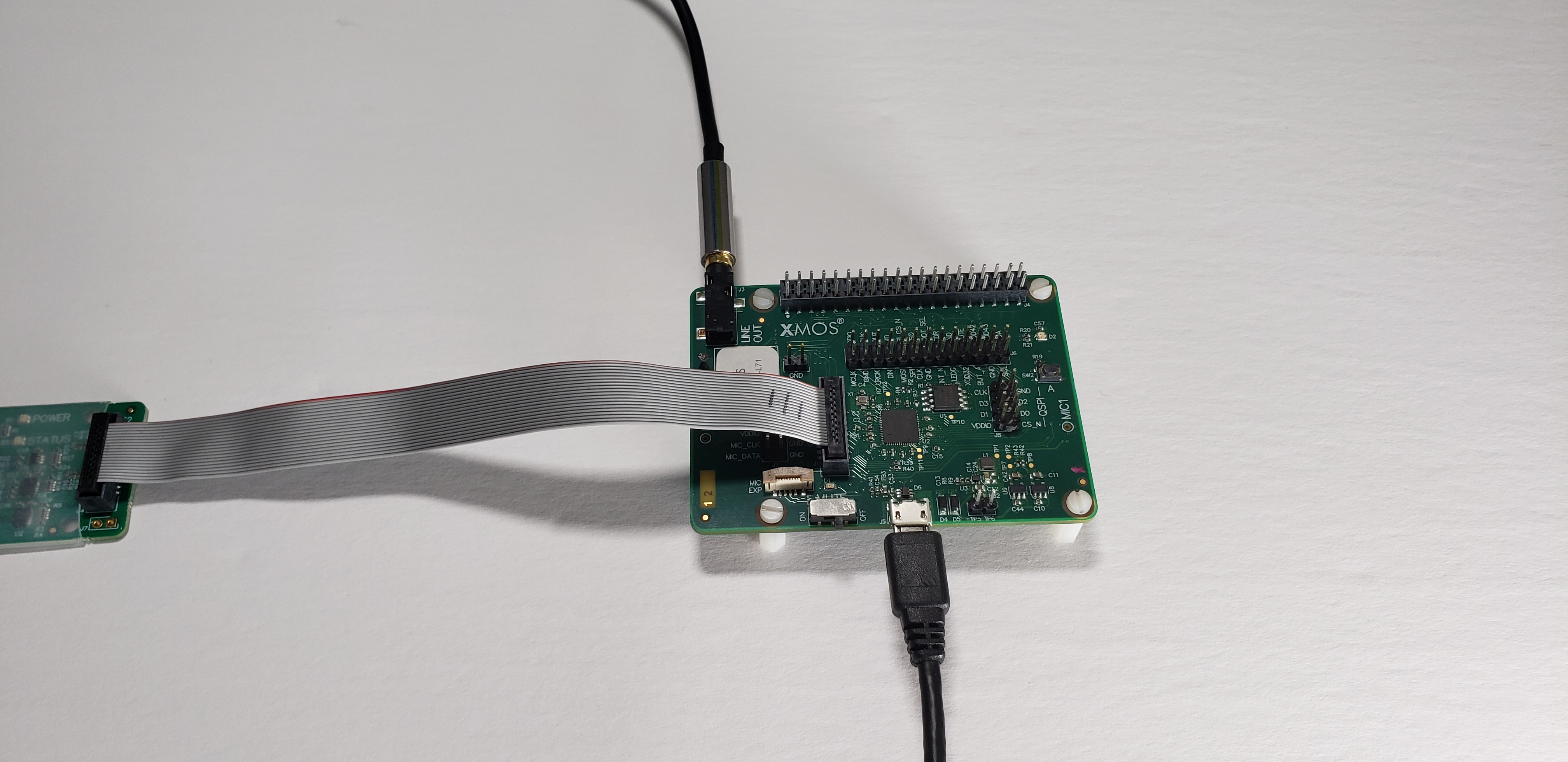

Speakers (OPTIONAL)#

This example application features audio playback responses. Speakers can be connected to the LINE OUT on the XK-VOICE-L71.

speakers
