Supported Hardware#
This example application is supported on the XK-VOICE-L71 board.
Setting up the Hardware#
This example design requires an XTAG4 and XK-VOICE-L71 board.

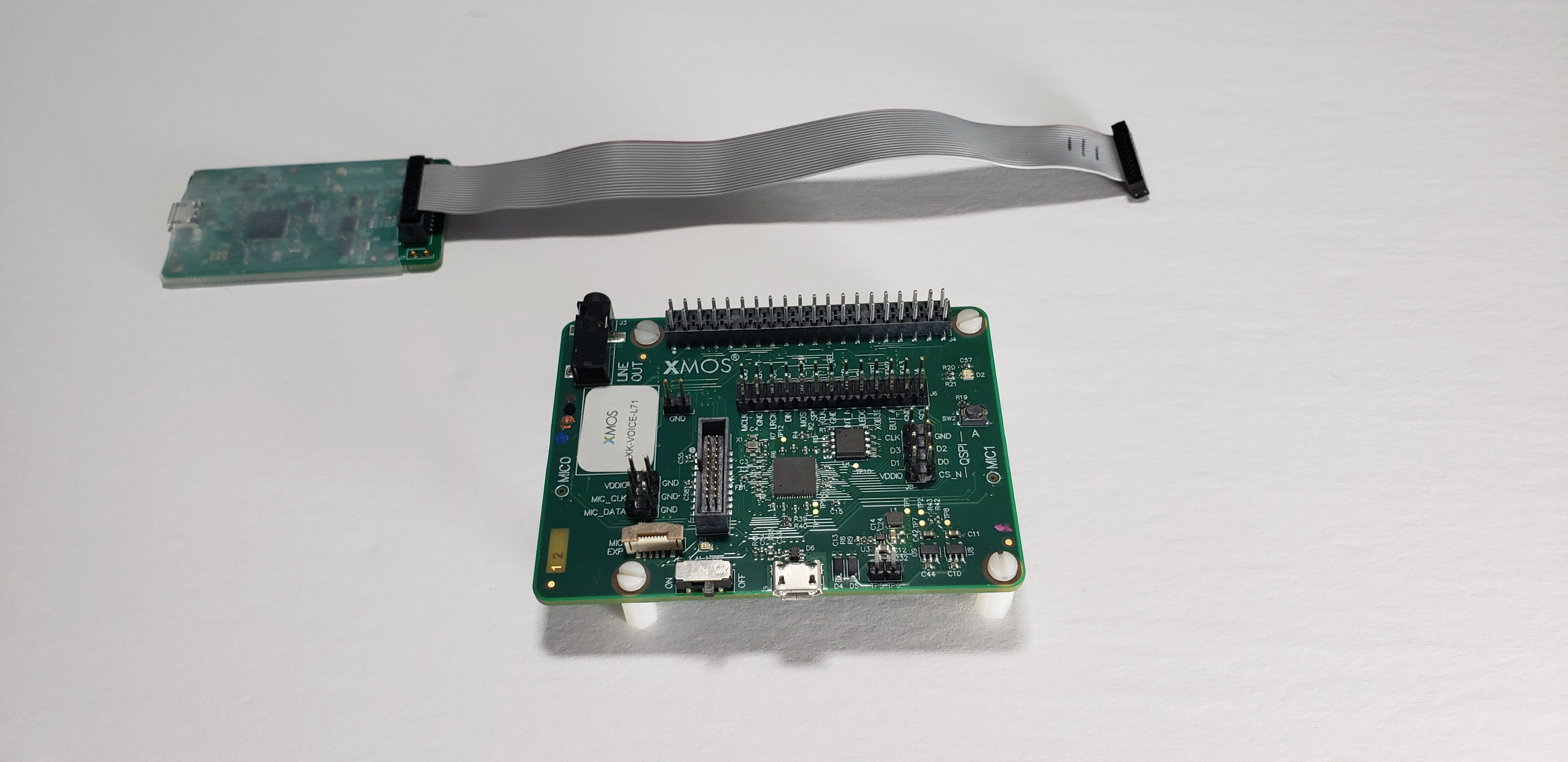

![all components](../../../_images/all_components.jpg)
xTAG#
The xTAG is used to program and debug the device
Connect the xTAG to the debug header, as shown below.
![xtag](../../../_images/xtag_installation.jpg)
Connect the micro USB XTAG4 and micro USB XK-VOICE-L71 to the programming host.
![programming host setup](../../../_images/host_setup.jpg)
Speakers (OPTIONAL)#
This example application features audio playback responses. Speakers can be connected to the LINE OUT on the XK-VOICE-L71.
![speakers](../../../_images/speakers.jpg)
