Package information

Device markings

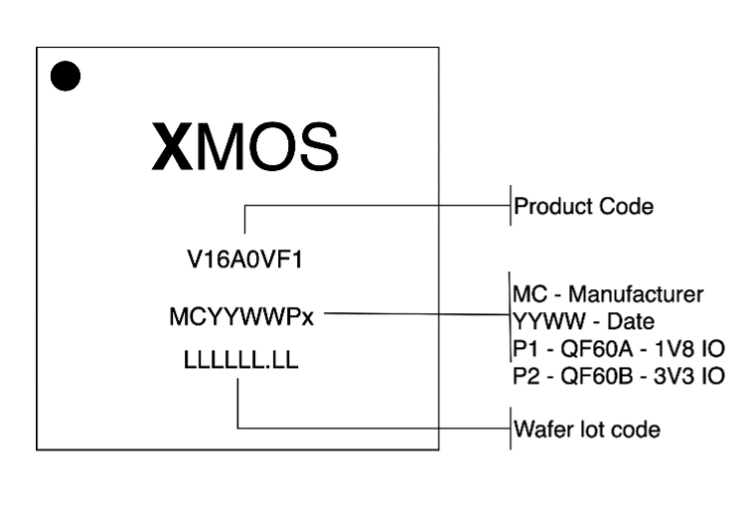

Fig. 18 Part marking scheme

Important

The two variants of the package(1.8V and 3.3V I/O) are distinguished by a P1 or P2 code after the date code (YYWW) on the package

Order codes

Table 23 Ordering codes

Product code	Marking **	Description
XVF3610-QF60A-C	V16A0VF1 MCYYWWP1	Commercial Temp range (0 °C – 70 °C), 1.8V IO
XVF3610-QF60B-C	V16A0VF1 MCYYWWP2	Commercial Temp range (0 °C – 70 °C), 3.3V IO
XVF3610-QF60A-I	V16A0VF1I MCYYWWP1	Industrial Temp range (-40 °C – 85 °C), 1.8V IO
XVF3610-QF60B-I	V16A0VF1I MCYYWWP2	Industrial Temp range (-40 °C – 85 °C), 3.3V IO

Note

** MC – Manufacturer, YY – Year code, WW – Week code, Px - I/O volage

Moisture Sensitivity Level

The package moisture sensitivity level rating is MSL-3. devices have a shelf life of 168 hours between removal from the packaging and reflow, provided they are stored below 30C and 60% RH. If devices have exceeded these values or an included moisture indicator card shows excessive levels of moisture, then the parts should be baked as appropriate before use. This is based on information from Joint IPC/JEDEC Standard for Moisture/Reflow Sensitivity Classification for Non-hermetic Solid-State Surface-Mount Devices (J-STD-020 Revision D)

Hazardous Materials

This product complies with the Reduction of Hazardous Substances (RoHS) directive.

For details refer to https://www.xmos.ai/environmental
