sw_display_controller demo : Quick Start Guide

The XP-SKC-L2 Slicekit Core board has four slots with edge conectors: SQUARE, CIRCLE, TRIANGLE and STAR.

To setup up the system:

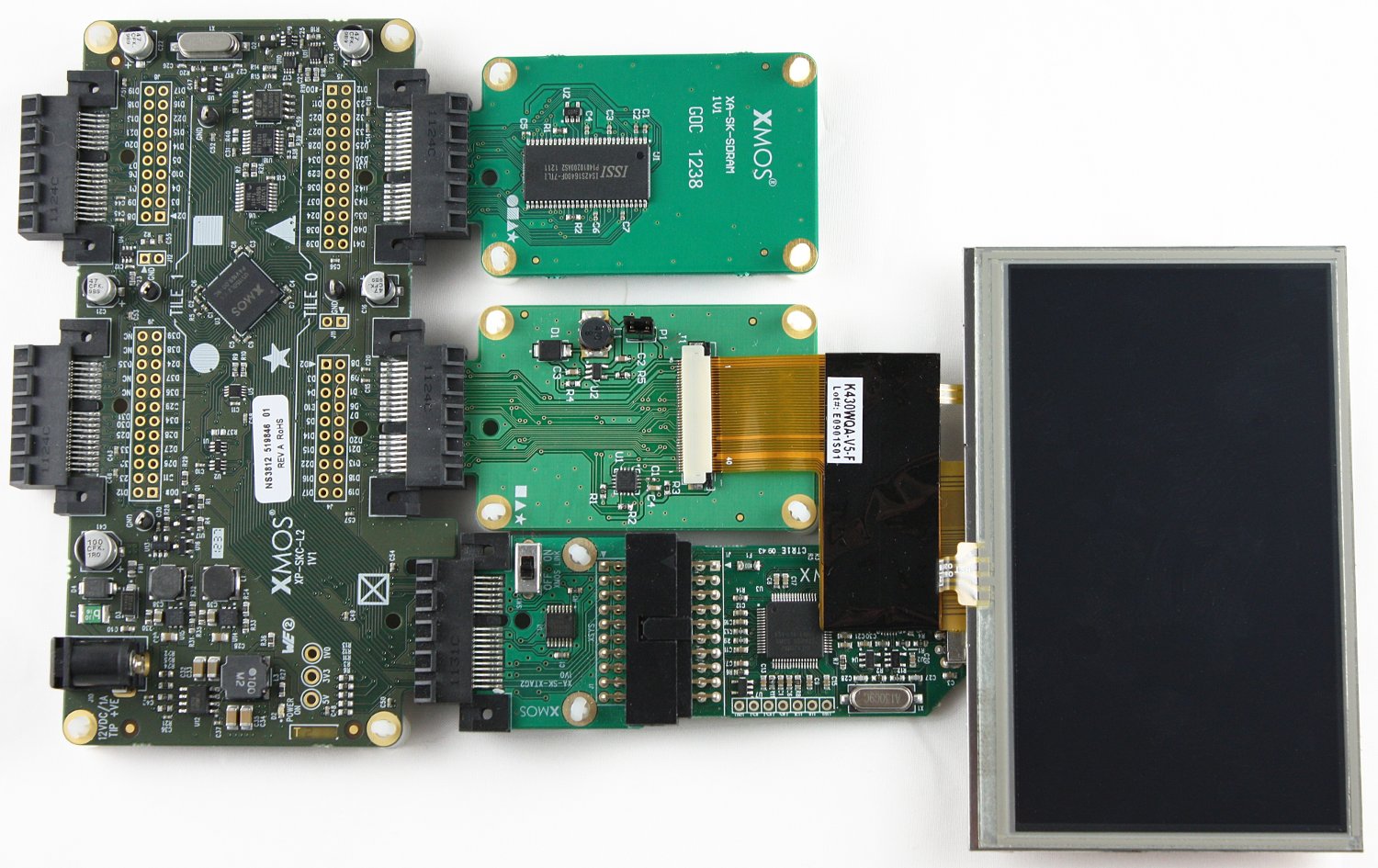

1. Connect XA-SK-SDRAM Slice Card to the XP-SKC-L2 Slicekit Core board using the connector marked with the TRIANGLE.
2. Connect XA-SK-SCR480 Slice Card to the XP-SKC-L2 Slicekit Core board using the connector marked with the STAR.
3. Connect the XTAG Adapter to Slicekit Core board, and connect XTAG-2 to the adapter.
4. Connect the XTAG-2 to host PC. Note that the USB cable is not provided with the Slicekit starter kit.
5. Set the XMOS LINK on the to OFF on the XTAG Adapter(XA-SK-XTAG2).
6. Ensure the jumper on the XA-SK-SCR480 is bridged if the back light is required.
7. Switch on the power supply to the Slicekit Core board.

Hardware Setup for Simple GPIO Demo

1. Open xTIMEcomposer and check that it is operating in online mode. Open the edit perspective (Window->Open Perspective->XMOS Edit).
2. Locate the 'Display Controller Demo' item in the xSOFTip pane on the bottom left of the window and drag it into the Project Explorer window in the xTIMEcomposer. This will also cause the modules on which this application depends to be imported as well.
3. Click on the app_display_controller_demo item in the Explorer pane then click on the build icon (hammer) in xTIMEcomposer. Check the console window to verify that the application has built successfully.

For help in using xTIMEcomposer, try the xTIMEcomposer tutorial. FIXME add link.

Note that the Developer Column in the xTIMEcomposer on the right hand side of your screen provides information on the xSOFTip components you are using. Select the module_display_controller component in the Project Explorer, and you will see its description together with API documentation. Having done this, click the back icon until you return to this quickstart guide within the Developer Column.

Now that the application has been compiled, the next step is to run it on the Slicekit Core Board using the tools to load the application over JTAG (via the XTAG2 and Xtag Adaptor card) into the xCORE multicore microcontroller.

1. Click on the Run icon (the white arrow in the green circle).
2. Wait until the images have loaded over the XTAG connector from the host.
3. There should be a series of 6 images the transition from one to another.

1. Trying changing the files that are loaded form the host. To do this, produce an image of 480 by 272 pixels, save it in tga format uncompressed in “top left” format (“bottom left” will also work but the image will have to be upside-down). Save the file(s) into the app_display_controller_demo directory within your workspace.
2. Each transition has a frame count that depecits the speed of the transition, try adjusting them and observe the results.
3. Try writing an exciting transition effect. To do this begin with the template shown below, and refer to the Display Controller API documentation at Configuration Defines:

::

static void transition_exciting_impl(chanend server, unsigned next_image_fb,

unsigned image_from, unsigned image_to, unsigned line) { //insert code here

} unsigned transition_exciting(chanend server, unsigned frame_buf[2],

unsigned from, unsigned to, unsigned frames, unsigned cur_fb_index) { unsigned next_fb_index; for (unsigned frame = 0; frame < frames; frame++) {

next_fb_index = (cur_fb_index + 1) & 1; for (unsigned line = 0; line < LCD_HEIGHT; line++)

transition_exciting_impl(server, frame_buf[next_fb_index], from, to, line);

frame_buffer_commit(server, frame_buf[next_fb_index]); cur_fb_index = next_fb_index;

} return cur_fb_index;

}
