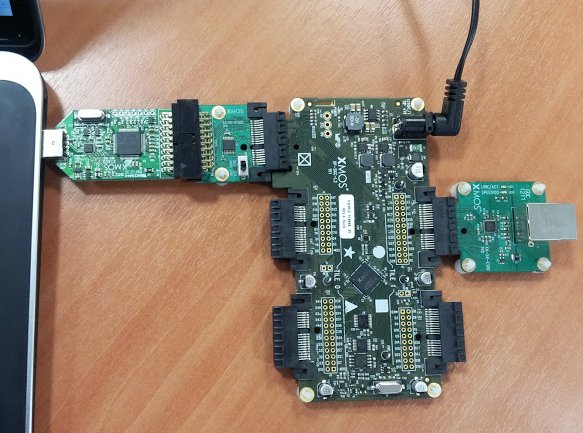

Ethernet Slice Simple Webserver Application Quickstart

The event handler is implemented in httpd.c and contains the main logic of the web server. The server can handle several connections at once. However, events for each connection may be interleaved so the handler needs to store separate state for each one. The httpd_state_t structures holds this state:

typedef struct httpd_state_t {
  int active;      //< Whether this state structure is being used
                   //  for a connection
  int conn_id;     //< The connection id
  char *dptr;      //< Pointer to the remaining data to send
  int dlen;        //< The length of remaining data to send
  char *prev_dptr; //< Pointer to the previously sent item of data
} httpd_state_t;

httpd_state_t connection_states[NUM_HTTPD_CONNECTIONS];

The http_init function is called at the start of the application. It initializes the connection state array and makes a request to accept incoming new TCP connections on port 80 (using the xtcp_listen() function):

void httpd_init(chanend tcp_svr)
{
  int i;
  // Listen on the http port
  xtcp_listen(tcp_svr, 80, XTCP_PROTOCOL_TCP);

  for ( i = 0; i < NUM_HTTPD_CONNECTIONS; i++ )
    {
      connection_states[i].active = 0;
      connection_states[i].dptr = NULL;
    }
}

When an event occurs the httpd_handle_event function is called. The behaviour of this function depends on the event type. Firstly, link status events are ignored:

void httpd_handle_event(chanend tcp_svr, xtcp_connection_t *conn)
{
  // We have received an event from the TCP stack, so respond
  // appropriately

  // Ignore events that are not directly relevant to http
  switch (conn->event)
    {
    case XTCP_IFUP: {
      xtcp_ipconfig_t ipconfig;
      xtcp_get_ipconfig(tcp_svr, &ipconfig);

#if IPV6
      unsigned short a;
      unsigned int i;
      int f;
      xtcp_ipaddr_t *addr = &ipconfig.ipaddr;
      printstr("IPV6 Address = [");
      for(i = 0, f = 0; i < sizeof(xtcp_ipaddr_t); i += 2) {
        a = (addr->u8[i] << 8) + addr->u8[i + 1];
        if(a == 0 && f >= 0) {
          if(f++ == 0) {
            printstr("::");
           }
        } else {
            if(f > 0) {
              f = -1;
            } else if(i > 0) {
                printstr(":");
            }
          printhex(a);
        }
      }
      printstrln("]");
#else
      printstr("IP Address: ");
      printint(ipconfig.ipaddr[0]);printstr(".");
      printint(ipconfig.ipaddr[1]);printstr(".");
      printint(ipconfig.ipaddr[2]);printstr(".");
      printint(ipconfig.ipaddr[3]);printstr("\n");
#endif
      }
      return;
    case XTCP_IFDOWN:
    case XTCP_ALREADY_HANDLED:
      return;
    default:
      break;
    }

For other events, we first check that the connection is definitely an http connection (is directed at port 80) and then call one of several event handlers for each type of event. The is a separate function for new connections, receiving data, sending data and closing connections:

  if (conn->local_port == 80) {
    switch (conn->event)
      {
      case XTCP_NEW_CONNECTION:
        httpd_init_state(tcp_svr, conn);
        break;
      case XTCP_RECV_DATA:
        httpd_recv(tcp_svr, conn);
        break;
      case XTCP_SENT_DATA:
      case XTCP_REQUEST_DATA:
      case XTCP_RESEND_DATA:
          httpd_send(tcp_svr, conn);
          break;
      case XTCP_TIMED_OUT:
      case XTCP_ABORTED:
      case XTCP_CLOSED:
          httpd_free_state(conn);
          break;
      default:
        // Ignore anything else
        break;
      }
    conn->event = XTCP_ALREADY_HANDLED;
  }

The following sections describe the four handler functions.

When a XTCP_NEW_CONNECTION event occurs we need to associate some state with the connection. So the connection_states array is searched for a free state structure.

void httpd_init_state(chanend tcp_svr, xtcp_connection_t *conn)
{
  int i;

  // Try and find an empty connection slot
  for (i=0;i<NUM_HTTPD_CONNECTIONS;i++)
    {
      if (!connection_states[i].active)
        break;
    }

If we don’t find a free state we cannot handle the connection so xtcp_abort`() is called to abort the connection.

  if ( i == NUM_HTTPD_CONNECTIONS )
    {
      xtcp_abort(tcp_svr, conn);
    }

If we can allocate the state structure then the elements of the structure are initialized. The function xtcp_set_connection_appstate() is then called to associate the state with the connection. This means when a subsequent event is signalled on this connection the state can be recovered.

  else
    {
      connection_states[i].active = 1;
      connection_states[i].conn_id = conn->id;
      connection_states[i].dptr = NULL;
      xtcp_set_connection_appstate(
           tcp_svr,
           conn,
           (xtcp_appstate_t) &connection_states[i]);

When a XTCP_TIMED_OUT, XTCP_ABORTED or XTCP_CLOSED event is received then the state associated with the connection can be freed up. This is done in the httpd_free_state function:

void httpd_free_state(xtcp_connection_t *conn)
{
  int i;

  for ( i = 0; i < NUM_HTTPD_CONNECTIONS; i++ )
    {
      if (connection_states[i].conn_id == conn->id)
        {
          connection_states[i].active = 0;
        }
    }
}

When an XTCP_RECV_DATA event occurs the httpd_recv function is called. The first thing this function does is call the xtcp_recv() function to place the received data in the data array. (Note that all TCP/IP clients must call xtcp_recv() directly after receiving this kind of event).

void httpd_recv(chanend tcp_svr, xtcp_connection_t *conn)
{
  struct httpd_state_t *hs = (struct httpd_state_t *) conn->appstate;
  char data[XTCP_CLIENT_BUF_SIZE];
  int len;

  // Receive the data from the TCP stack
  len = xtcp_recv(tcp_svr, data);

The hs variable points to the connection state. This was recovered from the appstate member of the connection structure which was previously associated with application state when the connection was set up. As a safety check we only proceed if this state has been set up and the hs variable is non-null.

  if ( hs == NULL || hs->dptr != NULL)
    {
      return;
    }

Now the connection state is known and the incoming data buffer filled. To keep things simple, this server makes the assumption that a single tcp packet gives us enough information to parse the http request. However, many applications will need to concatenate each tcp packet to a different buffer and handle data after several tcp packets have come in. The next step in the code is to call the parse_http_request function:

  parse_http_request(hs, &data[0], len);

This function examines the incoming packet and checks if it is a GET request. If so, then it always serves the same page. We signal that a page is ready to the callee by setting the data pointer (dptr) and data length (dlen) members of the connection state.

void parse_http_request(httpd_state_t *hs, char *data, int len)
{
  // Return if we have data already
  if (hs->dptr != NULL)
    {
      return;
    }

  // Test if we received a HTTP GET request
  if (strncmp(data, "GET ", 4) == 0)
    {
      // Assign the default page character array as the data to send
      hs->dptr = &page[0];
      hs->dlen = strlen(&page[0]);
    }
  else
    {
      // We did not receive a get request, so do nothing
    }
}

The final part of the receive handler checks if the parse_http_request function set the dptr data pointer. If so, then it signals to the tcp/ip server that we wish to send some data on this connection. The actual sending of data is handled when an XTCP_REQUEST_DATA event is signalled by the tcp/ip server.

  if (hs->dptr != NULL)
    {
      // Initate a send request with the TCP stack.
      // It will then reply with event XTCP_REQUEST_DATA
      // when it's ready to send
      xtcp_init_send(tcp_svr, conn);
    }

To send data the connection state keeps track of three variables:

We keep the previous value of dptr in case the tcp/ip server asks for a resend.

On receiving an XTCP_REQUEST_DATA, XTCP_SENT_DATA or XTCP_RESEND_DATA event the function httpd_send is called.

The first thing the function does is check whether we have been asked to resend data. In this case it sends the previous amount of data using the prev_dptr pointer.

  if (conn->event == XTCP_RESEND_DATA) {
    xtcp_send(tcp_svr, hs->prev_dptr, (hs->dptr - hs->prev_dptr));
    return;
  }

If the request is for the next piece of data, then the function first checks that we have data left to send. If not, the function xtcp_complete_send() is called to finish the send transaction and then the connection is closed down with xtcp_close() (since HTTP only does one transfer per connection).

  if (hs->dlen == 0 || hs->dptr == NULL)
    {
      // Terminates the send process
      xtcp_complete_send(tcp_svr);
      // Close the connection
      xtcp_close(tcp_svr, conn);
    }

If we have data to send, then first the amount of data to send is calculated. This is based on the amount of data we have left (hs->dlen) and the maximum we can send (conn->mss). Having calculated this length, the data is sent using the xtcp_send() function.

Once the data is sent, all that is left to do is update the dptr, dlen and prev_dptr variables in the connection state.

  else {
    int len = hs->dlen;

    if (len > conn->mss)
      len = conn->mss;

    xtcp_send(tcp_svr, hs->dptr, len);

    hs->prev_dptr = hs->dptr;
    hs->dptr += len;
    hs->dlen -= len;
  }
