Use xTIMEcomposer to simulate a program

The xCORE simulator provides a near cycle-accurate model of systems built from one or more xCORE devices. Using the simulator, you can view a processor’s instruction trace, visualize machine state and configure loopbacks to model the behavior of components connected to XMOS ports and links.

Configure the simulator

To configure the simulator, follow these steps:

  1. Select a project in the Project Explorer.
  2. Choose RunRun Configurations.
  3. In the left panel, double-click XCore Application. xTIMEcomposer creates a new configuration and displays the default settings in the right panel.
  4. In the right panel, in Name, enter a name for the configuration.
  5. xTIMEcomposer tries to identify the target project and executable for you. To select one yourself, click Browse to the right of the Project text box and select your project in the Project Selection dialog box. Then click Search Project and select the executable file in the Program Selection dialog box.

    You must have previously compiled your program without any errors for the executable to be available for selection.

  6. Select the simulator option and click the Simulator tab to configure additional options, as shown in the figure below.
    Simulator configuration options
    images/sim-config-options.png

    • To output the processor instruction trace during simulation, select Dump simulator trace.

      By default, the instruction trace is displayed in the Console. To write the trace to a file instead, select Trace to file and enter a filename. The filename must be different from all other files in your project.

      The format of the instruction trace is described No Caption.

    • To view a summary of the program’s execution once the program terminates, select Display statistics. The summary includes the instruction count for each logical core, and the number of data and control tokens sent through the switches.
    • To limit the number of cycles executed by the simulator, enter a value in the Limit cycles to text box. Leave blank if you want the program to run from start to finish. This is useful for simulating programs with infinite loops.
  7. To save and run the configuration, click Run.

xTIMEcomposer loads your executable, displaying any output generated by your program in the Console.

xTIMEcomposer remembers the configuration last used to run your program. To run it again using the same configuration, just click the Run button (Run button) button. To use a different configuration, click the arrow to the right of the Run button and select a configuration from the drop-down list.

Trace a signal

The simulator can output signal tracing data to a VCD file which you can visualize with the xTIMEcomposer waveform viewer.

Enable signal tracing

To enable signal tracing during simulation, follow these steps:

  1. Create a simulator Run Configuration.
  2. In the Simulator tab, in the Signal Tracing panel, select Enable signal tracing.
    • To trace all I/O pins, in the System Trace Options group, select Pins.
    • To trace machine state on a specific core, in the Core Trace Options group, click Add to display a set of configurable drop-down lists and checkboxes. Then select the core and machine state you wish to trace. You can trace process cycles, ports, cores, clock blocks, pads and processor instructions.
  3. Click Run.

xTIMEcomposer loads your program into the simulator and, on termination, adds the generated VCD file to your project.

View a trace file

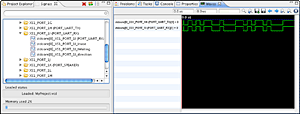

In the Project Explorer, double-click on a VCD file to open it in the Signals view, as shown in the figure below.

Signals and Waves views
images/sim-views-waveform.png

In the Signals View, click the plus sign (Windows) or the disclosure triangle (Mac) to expand a folder and display its collection of signals or subfolders. Double-click on a signal or an entire folder to display in the Waves view.

To switch between a hierarchical and flat view of the signals, click the Display button (Display button) .

View a signal

In the Waves view, move the cursor over a signal to view the time since the start of the simulation in the right numerical control at the top of the Waves view. If the cursor changes to a pointing finger, you can double-click to locate the output statement in the source code responsible for driving the signal. Use the Waves view toolbar to perform the following operations:

  • To view the entire waveform, click the Zoom Fit button (Zoom fit button) .
  • To move between transitions of the selected signal, click the Next (Next button) and Previous (Previous button) buttons. The output statement responsible for the transition is highlighted in the editor.
  • To search for a specific transition, click the Search Transition button (Search transition button) to open a dialog box. Enter a value and click Find.
  • To save the configuration, click the Write Session File button (Write session file button) and enter a filename for the file. Your settings are saved for use whenever you load the VCD file in the Waves view. Click the Read Session File button (Read session file button) to load a recently saved settings file.

You can control how signals are displayed in the Waves view as follows:

  • Display signal values in ASCII

    Right-click on a signal in the Waves view to bring up a contextual menu and choose Data FormatASCII.

  • Add a separator between signals

    Right-click on a signal in the Waves view to bring up a menu and choose Add Separator.

  • Name a separator

    Right-click on a separator to bring up a menu and choose Name Separator. Enter a name for the separator in the Name Separator dialog box and click OK.

  • Move a separator

    Click-and-drag a separator to the desired position.

Set up a loopback

You can connect any two ports or pins together in your simulation, to model connections between the pins. To configure a loopback, follow these steps:

  1. Create a simulator Run Configuration.
  2. Click the Simulator tab to display the simulator configuration options.
  3. Click the Loopback tab in the Plugins panel and select Enable pin connections.

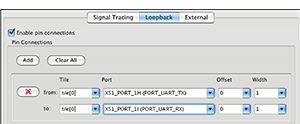

  4. In the Pin Connections panel, click Add. An empty loopback configuration is displayed. The loopback consists of two sets of options that you can configure for two different ports.
    Setting up a loopback connection
    images/sim-pins-add.png

  5. In the drop-down lists for each end of the connection, select a value for Tile and Port. If you leave the tile unspecified, the list of ports is taken from the project’s XN file and the tile is determined automatically. If you specify tile, the list of ports is taken from the header file <xs1.h>. To specify that only a subset of the pins are connected to the port, change the values for Offset and Width.
  6. Click Run.

Configure a simulator plugin

You can connect the simulator to any external plugin that has been compiled on your host PC using the XMOS simulator plugin interface. To configure an external plugin, follow these steps:

  1. Create a simulator Run Configuration.
  2. Click the Simulator tab to display the simulator configuration options.
  3. In the Plugins panel, click the External tab.
  4. Click Add to open the plugin configuration dialog.
    Setting up an external plugin
    images/sim-external-plugin.png
  5. Select the plugin DLL and specify an optional command-line argument string.
  6. Click Run to save your settings and run your program on the simulator with the specified plugins.
