Use xTIMEcomposer and xSCOPE to trace data in real-time

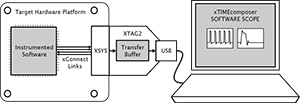

To allow the tools to configure the xCONNECT link required for high speed data collection using xscope, the XN file for a board must be modified to expose the connection to the XTAG-2 device. The following information must be added to the links section of an XN file for a board to set up the link used by the target device to communicate with the XTAG-2 and the xscope channel.

<Link Encoding="2wire" Delays="4,4" Flags="XSCOPE">
  <LinkEndpoint NodeId="0" Link="X0LD"/>
  <LinkEndpoint RoutingId="0x8000" Chanend="1"/>
</Link>

Note that when the link is set to 2 wire, the minimum delay is set to 4 and the flags specify that this link is to be used for streaming debug. Setting the delay higher results in the output of packets used by xscope being less frequent. The RoutingId is also important as the value 0x8000 specifies to the tools that this is a special link used for xscope.

When used in a multi-tile system the NodeId of the package which is connected to the XSYS connector must be specified. The tools set up the links with the other tiles but they need to know which specific device has the external link to be connected to the XTAG-2.

The example program in Program that traces input levels to a microphone uses the xSCOPE instrumentation functions to trace the input levels to a microphone.

#include <xscope.h>

port micL;
port micR;

void xscope_user_init(void) {
  xscope_register(2,
    XSCOPE_CONTINUOUS, "Microphone Left",  XSCOPE_UINT, "mV",
    XSCOPE_CONTINUOUS, "Microphone Right", XSCOPE_UINT, "mV"
  );
}

int main() {
  while (1) {
    int sample;
    micL :> sample;
    xscope_uint(0, sample);
    micR :> sample;
    xscope_uint(1, sample);
  }
}

The constructor xscope_user_init registers two probes for tracing the left and right inputs to a microphone. The probes are defined as continuous, which means xTIMEcomposer can interpolate values between two subsequent measurements. The probes are defined to take values of type unsigned int.

In main, the program calls the probe function xscope_uint each time it samples data from the microphone. This function creates a trace record and sends it to the PC.

The table below summarizes the different types of probes that can be configured. Only continous probes can be displayed real-time.

Once you have instrumented your program, you must compile and link it with the xSCOPE library, and run it in either offline or real-time mode.

To link with the xSCOPE library and run xSCOPE, follow these steps:

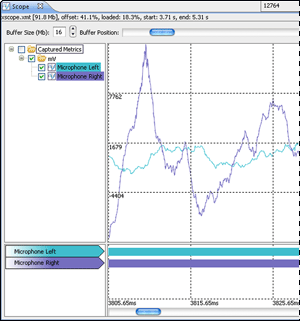

Double-click a trace file in Project Explorer to open it in the Scope view, as shown in the figure below.

Offline Scope view

The top panel of the Scope view displays a graph of the data values for each selected probe: the x-axis represents time (as per the timeline in the bottom panel) and the y-axis represents the traced data values. The probes are grouped by their assigned units, and multiple probes with the same unit can be overlaid onto a single graph.

Moving the cursor over the scope data displays the current data (y-value) and time (x-value) in the first two of the four numeric boxes at the top of the window. Left-click on the view to display a marker as a red line - the associated time is displayed in the third numeric box. The fourth numeric box displays the difference between the marker time and the current cursor position.

If the cursor changes to a pointing finger, double-click to locate the statement in the source code responsible for generating the trace point.

The bottom panel of this view displays a timeline for each probe: vertical lines on a probe’s timeline indicate times at which the probe created a record.

Drag the Buffer Position slider left or right to move through the timeline. To show more information in the window, increase the value in the Buffer Size field.

Use the Scope view toolbar at the top of the window to perform additional tasks:

To show data points for interpolated continuous signals, click the Continuous points button () .

To view all data points, click the Zoom Fit button () .

Load a trace file that is not part of your project, click the Open button () and browse to the file.

The Scope view can display trace data streamed from hardware in real-time. The left panel displays the signal information and controls and the right panel displays the screen view for the signals.

Real-Time Scope view

The left panel displays a list of the continous probes registered by the application (see Instrument a program). Each named probe is assigned a color that is used to draw events on the display, and which is used to identify the probe in the screen panel.

The Scope view is based around a traditional oscilloscope, and data is captured around a trigger, and then displayed. The capture mode, display mode, trigger and timebase are all controlled in the left panel. The right panel has 10 horizontal and vertical divisions, and the scales are all shown as units per division.

Numeric controls can all be modified by using the mouse: click the left button to increase the value or the right button to decrease the value. The scroll wheel can be used if your platform supports it (Mac OS/X, Linux, and some but not all versions of Windows).

Capture control

There are three capture-modes: continous, single capture or stopped. The default mode on start-up is for the system to capture and display continuously. The label associated with the capture controls shows the current state of the xSCOPE system.

Capture controls

Stop Display

• Stops the screen panel from triggering and capturing, no more updates will be applied to the screen whilst this mode is set. The mode can be used to inspect the captured data. The mouse can be used to change signal and time base scales and offsets as described below to inspect the signals in detail. When stopped, you can zoom in on the time base and view the signal in more detail: the displayed signals are subsampled when the timebase is large, and zooming in on the timebase will reveal all data.

Single Capture

• Selest single shot mode to capture one screen of data and return to the stopped state. If a trigger is enabled (see Trigger Controls) the system will wait for this trigger condition to be met before updating the screen and returning to the stopped state.

Continuous Capture

• Select free running mode to update the screen as frequently as possible. If triggers are enabled, the screen will update only when the trigger is met.

Signal Control

The signal controls are available for each registered probe on the coloured label displayed in the left panel (see the figure below)

Signal Controls

Enable / Disable Signal

• Toggle the visibility of the signal by double clicking on the name.

Signal Samples/Div

• Change the Samples per Division of this probe with the mouse buttons; this affects the vertical scale of the signal.

Signal Screen Offset

• Change the vertical Offset of this probe with the mouse buttons; this affects the vertical position of the signal.

Signal Trigger

• The signal can be used as a trigger (see Trigger Controls) by clicking in trigger box to the left of the probe label. Only one signal can be used for triggering.

Trigger Control

A trigger can be used to restrict the system so that data is only captured when a condition is met. By default all triggers are disabled, causing data to be captured unconditionally. To enable triggering, a trigger must be selected by clicking on the box to the left of the probe label.

When triggering is enabled, a cross appears on the screen showing the trigger level (relative to the signal on which the trigger is selected) and the trigger offset on the timebase. The center of the cross is the time and value where the trigger happens/happened; to the left of this are the signals that lead up to the trigger; to the right are the signals after the trigger.

The trigger level and offset can be set directly by clicking in the right-hand pane. Changes only take effect if the scope is not stopped, and either running continuously, or set for a single trigger.

Trigger Controls

Always

• Disables the trigger and captures data unconditionally.

Rising

• Trigger on a rising edge of the signal. This is the default mode when selecting a signal to be used for triggering.

Falling

• Trigger on a falling edge of the signal.

The value label associated with the enabled trigger shows the current trigger value set for the signal. This can be changed by using the mouse buttons.

Timebase Control

The timebase controls are used to set the time range for the signal capture window, allowing you to scale and shift the horizontal axis.

Timebase Controls

Time Window

• The current size to the time window. Scales all signals in time and affects the time per division.

Time per Division

• The time units per division. Scales all signals in time and affects the time window.

Time Window Offset

• The position of the trigger in the time window. Shifts all signals left and right. Note that the trigger may not be visible, and could be to the left or right of the time window. The signals can be shifted right only a limited value.

Screen Control

Several commands are available that operate on all signals.

Screen Controls

Auto Range Signals

• Automatically arranges all current signals to fit on the screen. The signals are measured for a short while, and each signal scaled and offset to fit the screen. All signals are displayed across each other.

Separate Signals

• Similar to Auto Range, but all signals are scaled to fit in a small part of the screen. All signals are offset so that they are visible separately.

Persistant Display

• Disabled.

Save Data

• Saves the current scope view to a PNG file in a user-defined location.

If you are using a legacy FTDI or XTAG-1 debug adapter, or if the XSYS connector on your target hardware does not provide an xCONNECT Link, you can output data over the UART interface provided by your adapter.

To use the UART interface, you must provide the xSCOPE library with a 1-bit UART TX port that has been initialized with the pin connected to the UART-TX pin on your debug adapter. An example initialization is shown below.

#include <platform.h>
#include <xscope.h>

port uart_tx = PORT_UART_TX;

void xscope_user_init(void) {
  xscope_register(2,
    XSCOPE_CONTINUOUS, "Microphone Left",  XSCOPE_UINT, "mV",
    XSCOPE_CONTINUOUS, "Microphone Right", XSCOPE_UINT, "mV"
  );
  xscope_config_uart(uart_tx);
}

Because the UART interface uses a port instead of an xCONNECT Link, the probe functions can be called on a single tile only.
